TAIHO Rice Observation Ultra Infrared Series - Hefei Taihe Intelligent Technology Group Co., Ltd

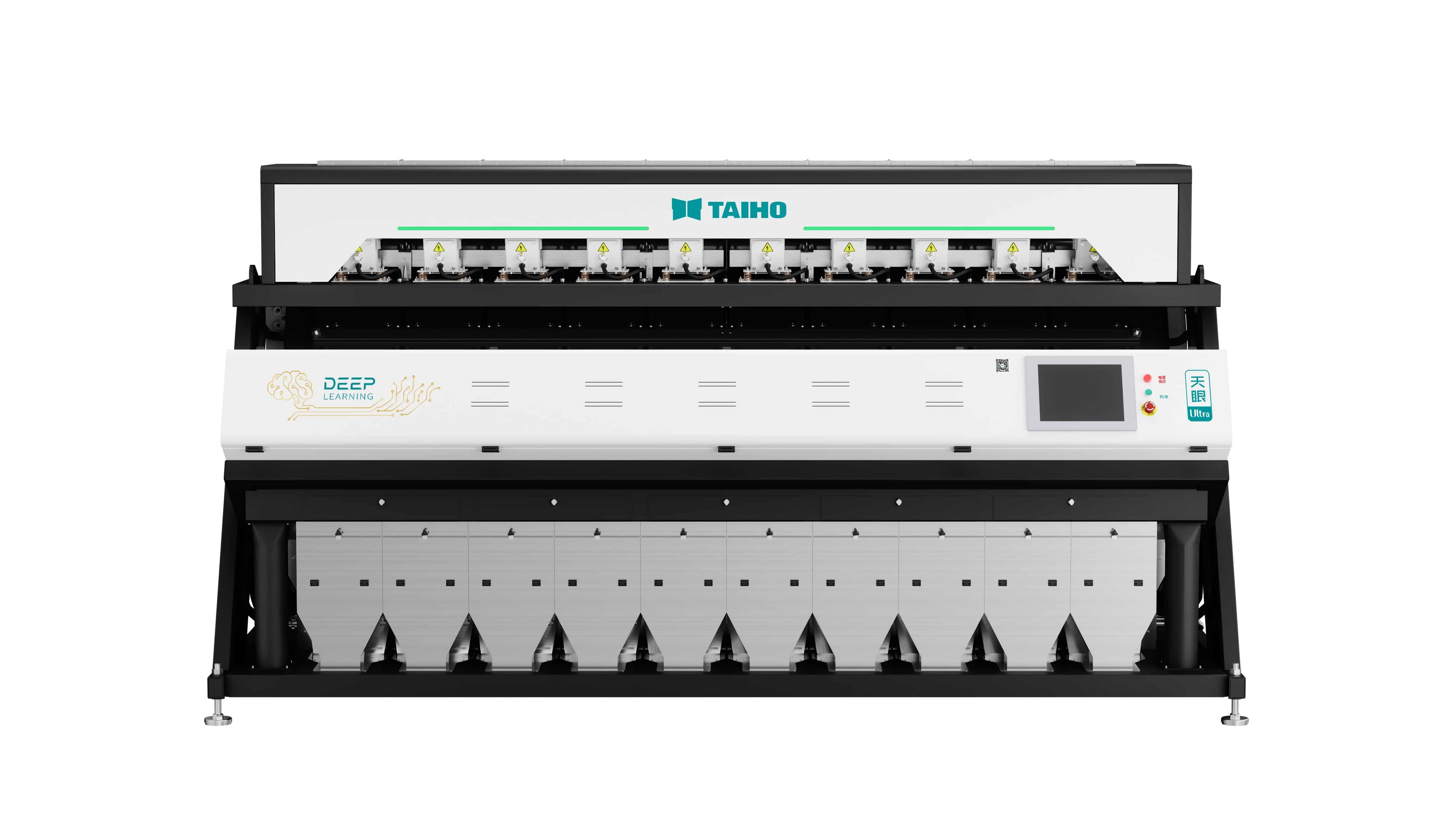

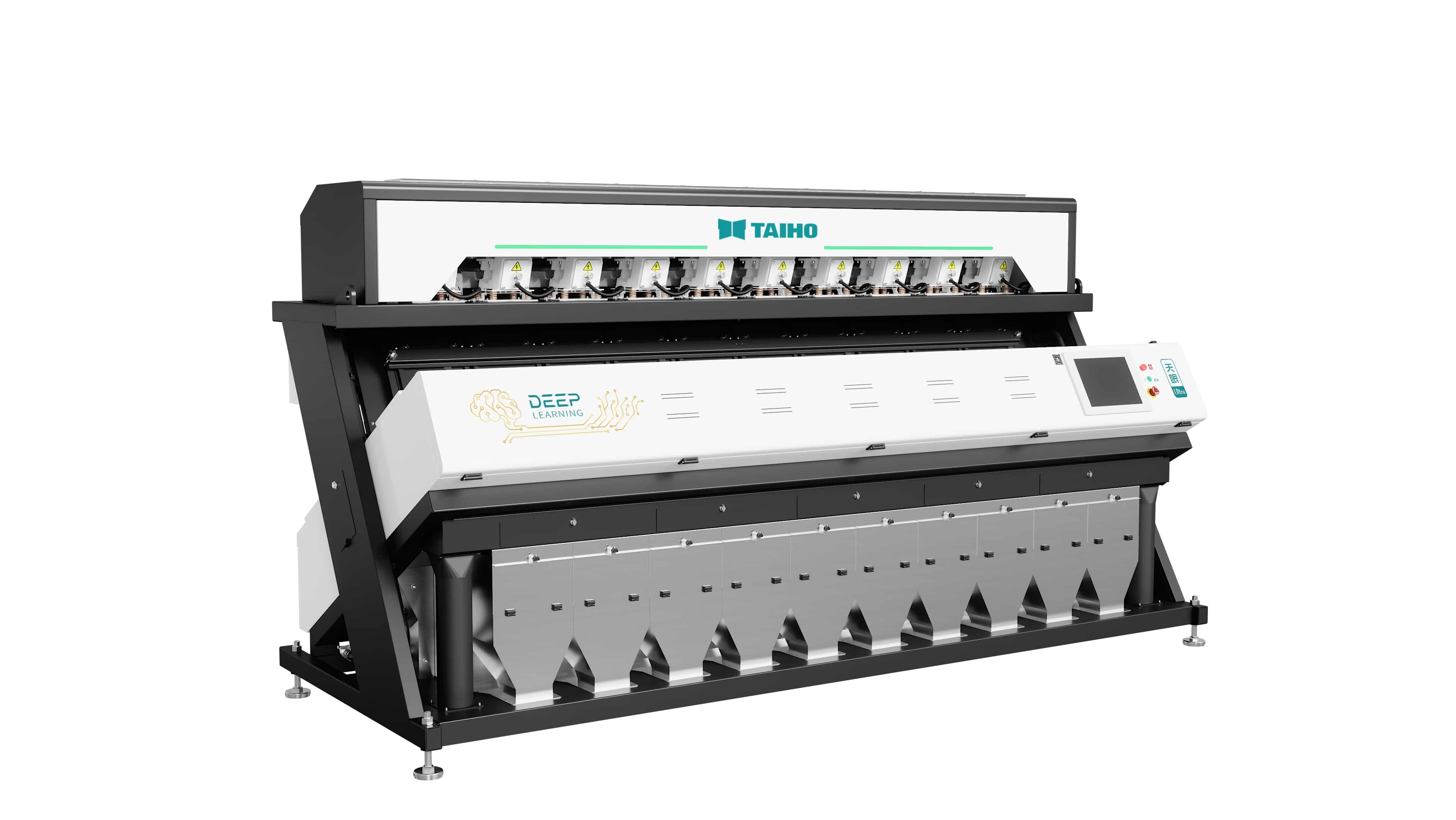

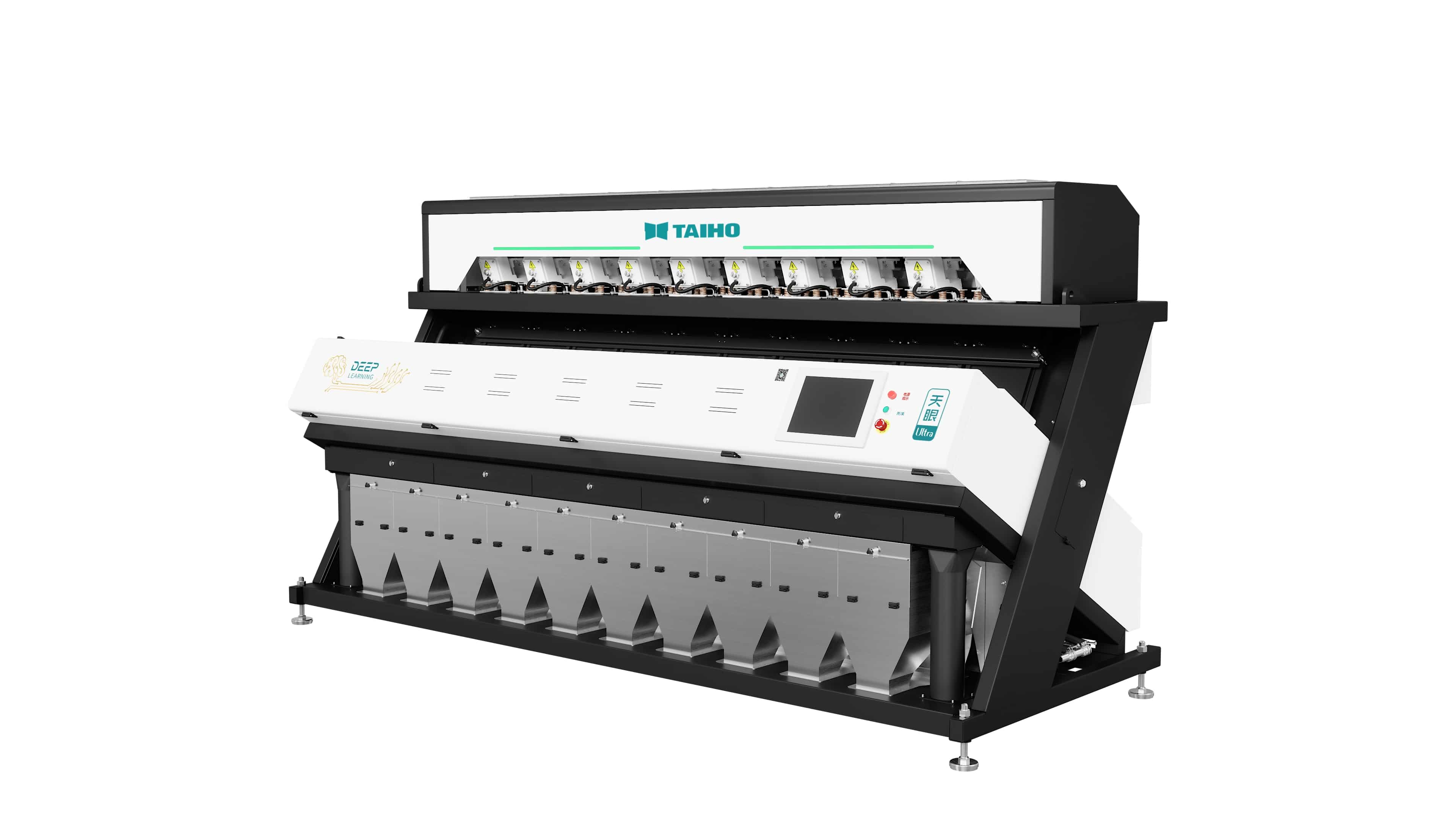

TAIHO Rice Observation Ultra Infrared Series

Exclusive lnfrared Sorting Solution, equipped with three professional configurations: Near-infrared (NlR), Composite infrared, and InGaAs infrared, as well as customized recognition algorithms. It accurately captures tiny impurities undetectable by the eyes and conventional equipment, enables in-depth sorting from the perspectives of composition and material properties, and provides multi-dimensional, high-precision quality assurance for premium rice processing

Exclusive Recognition Algorithm Micro-impurity Accurate Capture Multi-dimensional High-precision Sorting Triple Infrared Professional Configurations

Name：

6SXM-630V+IR 6SXM-720V+IR 6SXM-900V+IR 6SXM-1080V+IR 6SXM-1440V+IR

Online contact +86 182 2585 8868

Product advantages Specifications and Parameters

Product advantages

Twenty Years Of Deep Cultivation In Color Sorting, Doubled Production

Twenty years of deep cultivation in color sorting, both internal and external improvements, and doubled production. With new evolution, improved efficiency and increased production, platform-based models, upgraded modular structure, load increased by 3-5 times, feeding and rejection system efficiency increased by 30%, dust removal optimized by 50%, and production increased by 66%.

Thousand Process Quality Inspections, Consistent Quality

Nearly a thousand process quality inspections, consistent quality, and excellence. Thousands of quality inspections, quality control, standardized production, more stable equipment effects, SOC smart core matching intelligent high-frequency solenoid valve, blowing thousands of times per second, lower carry-out, higher clean rate.

Hundreds Of Algorithms To Identify Colors And Shapes

Hundreds of algorithms have been developed to identify colors and shapes. Shape and color selection by AI empowerment, intelligent system, identification as fine as 0.15mm, 350 million pixels ultra-clear resolution, new shape selection algorithm for yellow, white, transparent, long, round, and broken materials.

Cooperating With 10000+ Customers, Worry-Free After-Sales

Cooperating with tens of thousands of customers, intelligent interconnection, worry-free after-sales. We are listed brand with strong strength, we offer customized service 24/7 online, and real-time response in the cloud. Including user profile creation for tracking service, equipment can be intelligently interconnected to achieve remote operation and maintenance.

Specifications and Parameters

Model	Single-channel throughput (t/h)	Power (kw)	Supply voltage (v)	Air pressure (mpa)	Air consumption (m ³/min)	Size (mm)	Weight (kg)
6SXM-630V+IR	≤3.0	4.6	AC220V±5% 50/60Hz	0.5-0.8	＜5.5	282315251935	1910
6SXM-720V+IR		5.2	AC220V±5% 50/60Hz	0.5-0.8	＜6.0	313715251935	2125
6SXM-900V+IR		6.4	AC220V±5% 50/60Hz	0.5-0.8	＜7.0	376515251935	2510
6SXM-1080V+IR		8.0	AC220V±5% 50/60Hz	0.5-0.8	＜8.0	440315251935	2960
6SXM-1080V+IR (back to back)		8.1	AC220V±5% 50/60Hz	0.5-0.8	＜8.0	282229011940	2837
6SXM-1440V+IR (back to back)		10.5	AC220V±5% 50/60Hz	0.5-0.8	＜10.0	345029011940	3636

Note:

1. All color-sorting performance metrics are based on rice containing ≤5% impurities.

2. Product configurations are continuously updated; specifications may differ across production batches. The actual machine takes precedence.

3. Performance data in this brochure are derived from controlled tests; on-site results may vary due to environmental factors.

Model	Single-channel throughput (t/h)	Power (kw)	Supply voltage (v)	Air pressure (mpa)	Air consumption (m ³/min)	Size (mm)	Weight (kg)
6SXM-630V+IR	≤3.0	4.6	AC220V±5% 50/60Hz	0.5-0.8	＜5.5	282315251935	1910
6SXM-720V+IR		5.2	AC220V±5% 50/60Hz	0.5-0.8	＜6.0	313715251935	2125
6SXM-900V+IR		6.4	AC220V±5% 50/60Hz	0.5-0.8	＜7.0	376515251935	2510
6SXM-1080V+IR		8.0	AC220V±5% 50/60Hz	0.5-0.8	＜8.0	440315251935	2960
6SXM-1080V+IR (back to back)		8.1	AC220V±5% 50/60Hz	0.5-0.8	＜8.0	282229011940	2837
6SXM-1440V+IR (back to back)		10.5	AC220V±5% 50/60Hz	0.5-0.8	＜10.0	345029011940	3636

Note:

1. All color-sorting performance metrics are based on rice containing ≤5% impurities.

2. Product configurations are continuously updated; specifications may differ across production batches. The actual machine takes precedence.

3. Performance data in this brochure are derived from controlled tests; on-site results may vary due to environmental factors.
