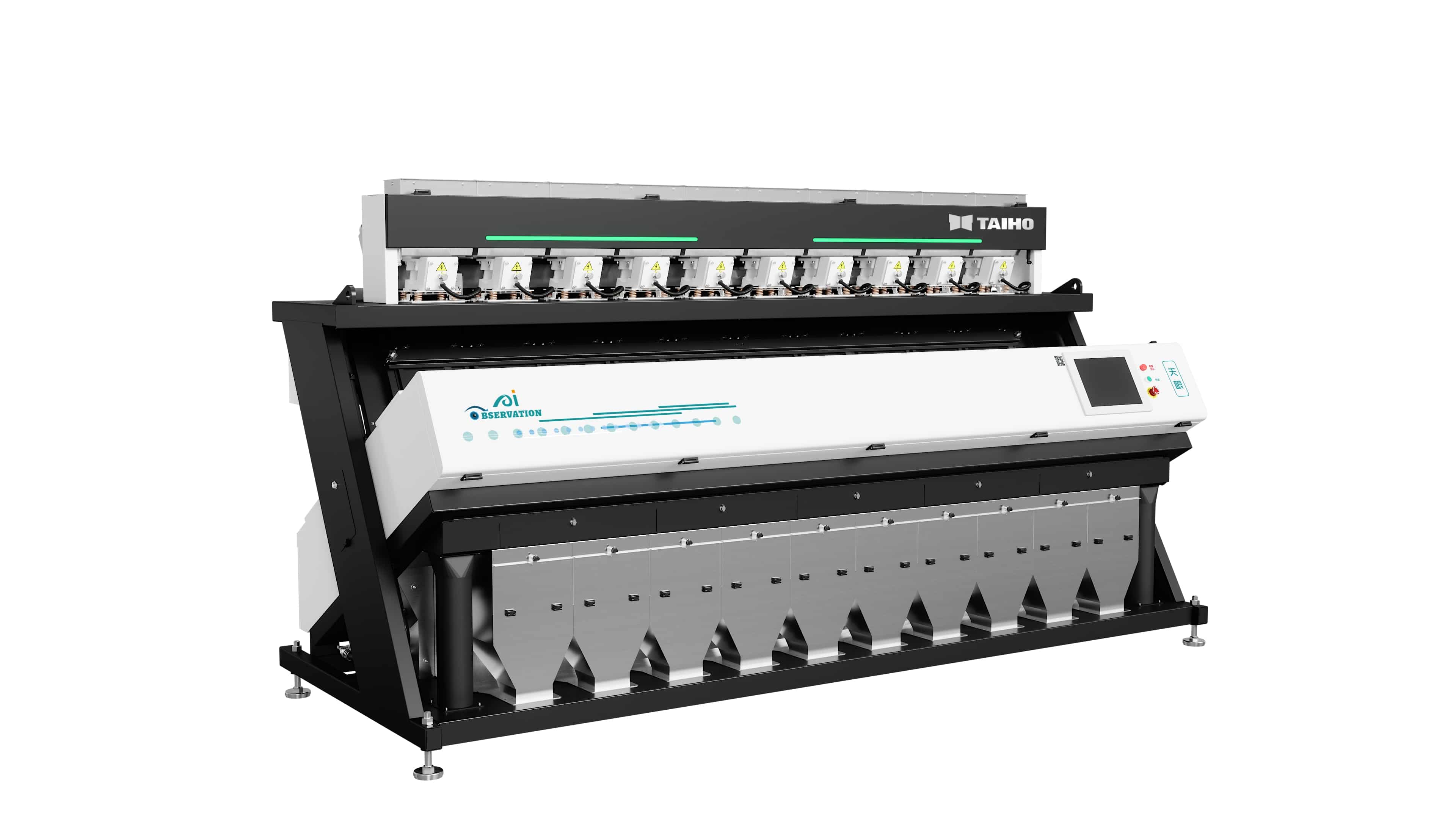

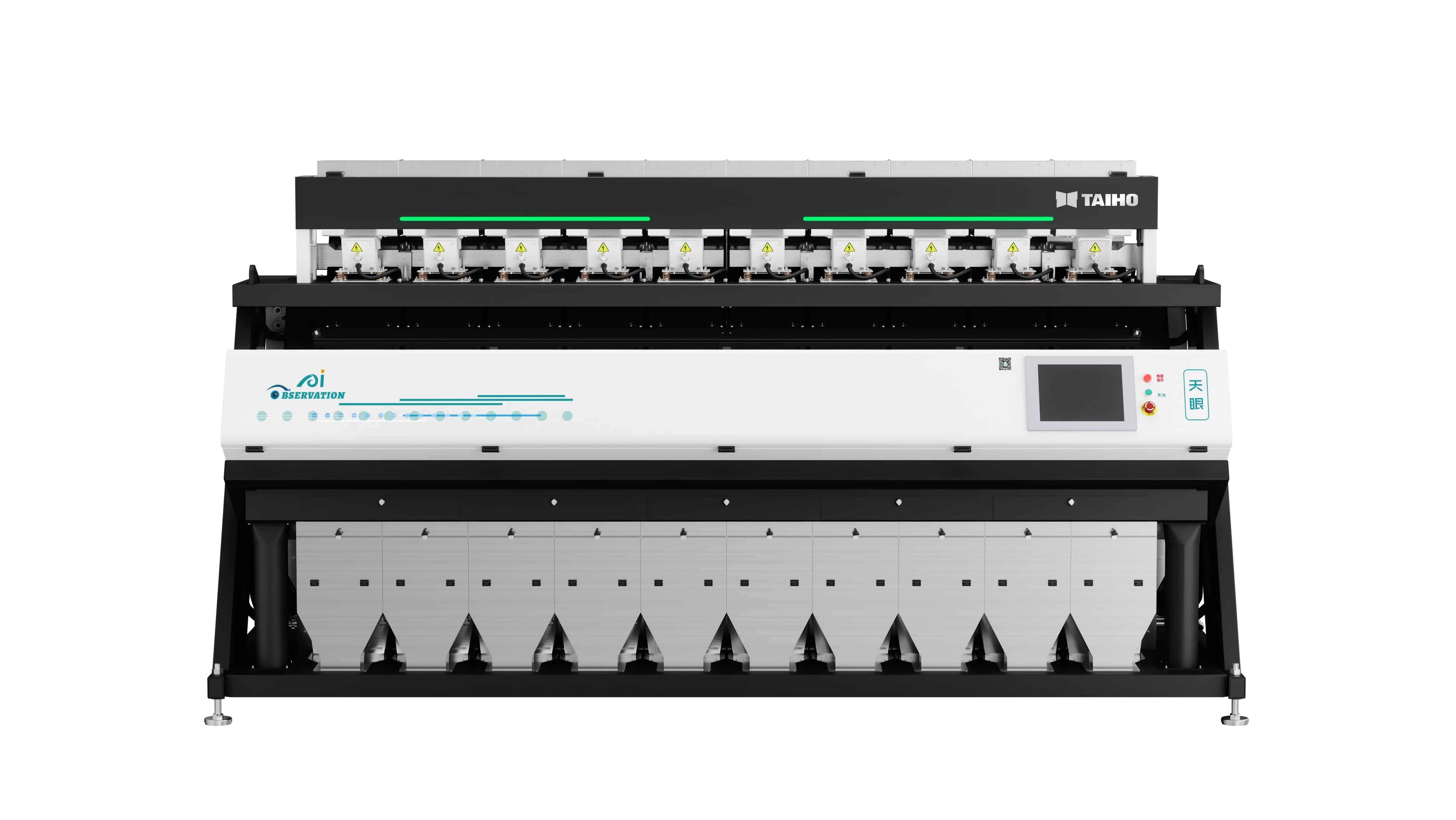

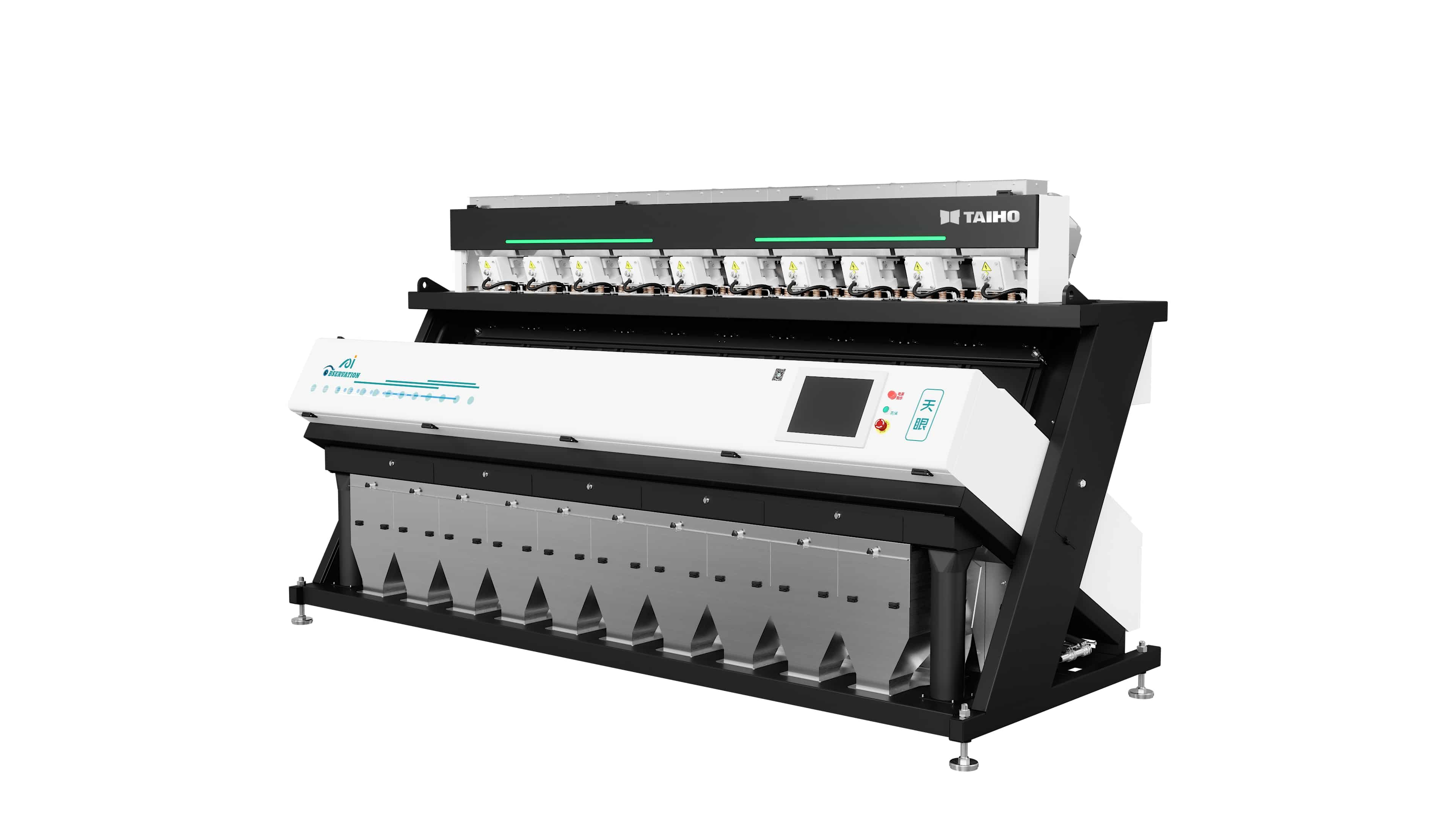

TAIHO Rice Observation Series

Upgraded from the proven classic model, equipped with a fully optimized and stable platform architecture. It inherits the reliable legacy and high-standard sorting precision, enhances operational stability, simplifies maintenance procedures, and provides long-term, high-precision, continuous sorting support for large-scale rice production lines.

Production doubled by 20 per cent CMOS Image Sensor Exclusive four-view imaging technology multispectral confocal technique (MCT) Rejects glass, drying agents, transparent plastic particles, etc.

Name：

6SXM-819V 6SXM-630V 6SXM-504V

Online contact +86 182 2585 8868

Scope of application Product advantages Specifications and Parameters

Scope of application

Polished glutinous rice

Polished round-grained rice

Indica rice

Brown rice

Red rice

Product advantages

CMOS sensor integration is higher

CMOS sensors have higher integration, reduce data transmission resistance, enhance computing power, and achieve real-time processing of massive data.

Excellent image color restoration ability

Excellent image color restoration ability, achieving extremely high frame rates and almost lossless image quality.

Upgrade of parallel processing capability of intelligent camera system

Equipped with an intelligent camera system, the parallel processing capability has been upgraded by four times, and the data throughput has been upgraded by more than two times.

Time sharing light source system

A time-sharing light source system is used to reduce the impact of stray light sources. Four images are collected in a single shot under different lighting conditions, with matching algorithms set according to different images.

Exclusive multi view 4 imaging algorithm

Exclusive multi view 4 imaging algorithm, fitting rice data model, realistically reproducing extremely light yellow, white belly, and white core.

Standard multispectral confocal function

Standard multi spectral confocal function is equipped to achieve precise identification and removal of glass, desiccant, and transparent plastic particles.

Color restoration algorithm

The color restoration algorithm integrates multi-dimensional data such as light, quality, color, and shape to restore the true color of materials.

TAl+Intelligent Manufacturing Internet Platform

By using TAl+intelligent manufacturing interconnection platform, enterprises, customers, and devices can be interconnected, with real-time collection of machine data and real-time monitoring of status.

Specifications and Parameters

Model	Single-channel throughput (t/h)	Power (kw)	Supply voltage (v)	Air pressure (mpa)	Air consumption (m ³/min)	Size (mm)	Weight (kg)
6SXM-189V+	≤2.0	2.4	AC220V±5% 50/60Hz	0.5-0.8	＜1.7	1736*1510.1945	981
6SXM-315V+		3.9	AC220V±5% 50/60Hz	0.5-0.8	＜2.8	235115101945	1283
6SXM-441V+		5.3	AC220V±5% 50/60Hz	0.5-0.8	＜3.9	285415101945	1650
6SXM-504V+		6.0	AC220V±5% 50/60Hz	0.5-0.8	＜4.4	316815101945	1845
6SXM-630V+		7.4	AC220V±5% 50/60Hz	0.5-0.8	＜5.5	379615101945	2165
6SXM-756V+		8.9	AC220V±5% 50/60Hz	0.5-0.8	＜6.6	443415101945	2572

Note:

1. All color-sorting performance metrics are based on rice containing ≤5% impurities.

2. Product configurations are continuously updated; specifications may differ across production batches. The actual machine takes precedence.

3. Performance data in this brochure are derived from controlled tests; on-site results may vary due to environmental factors.
