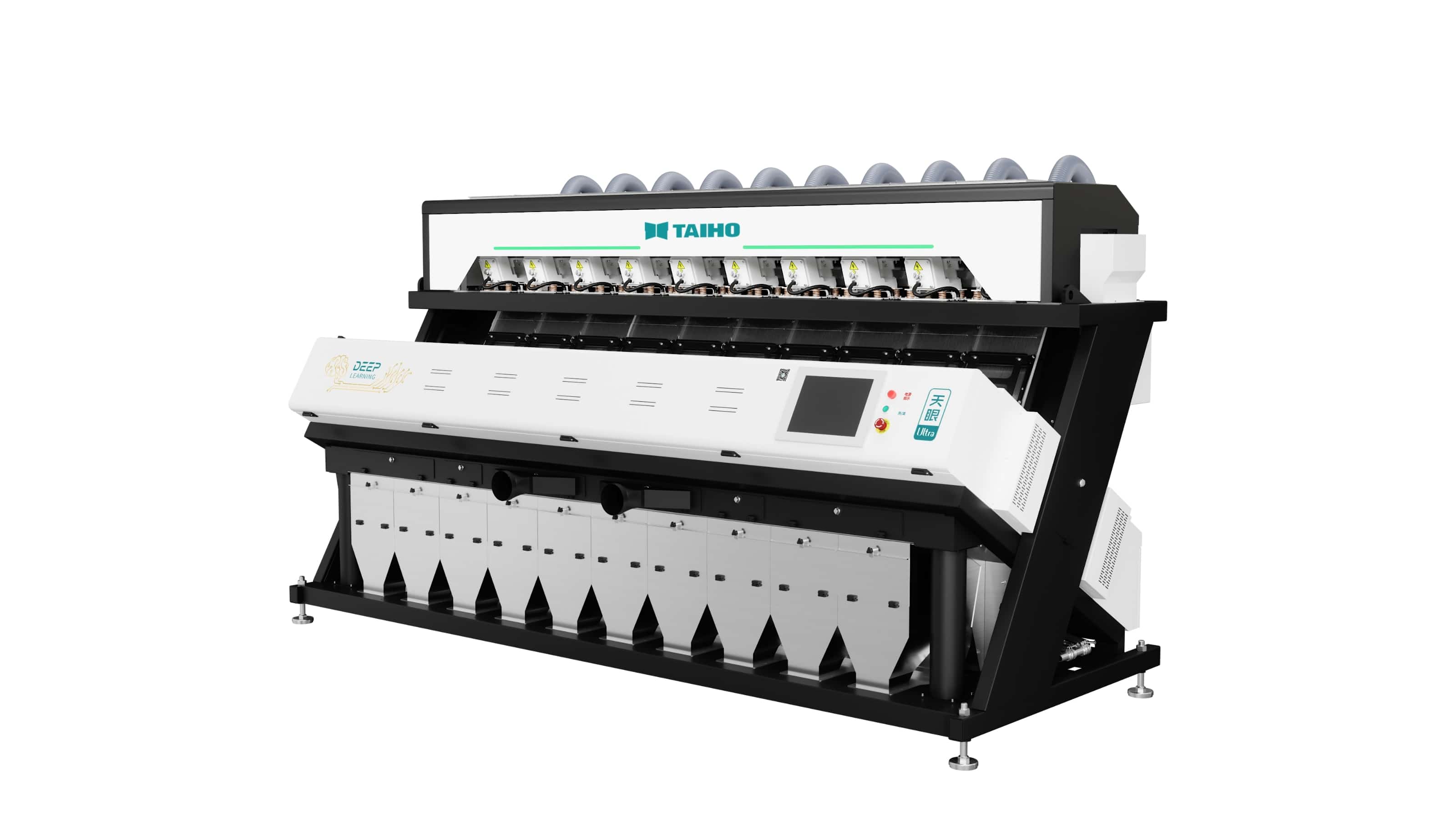

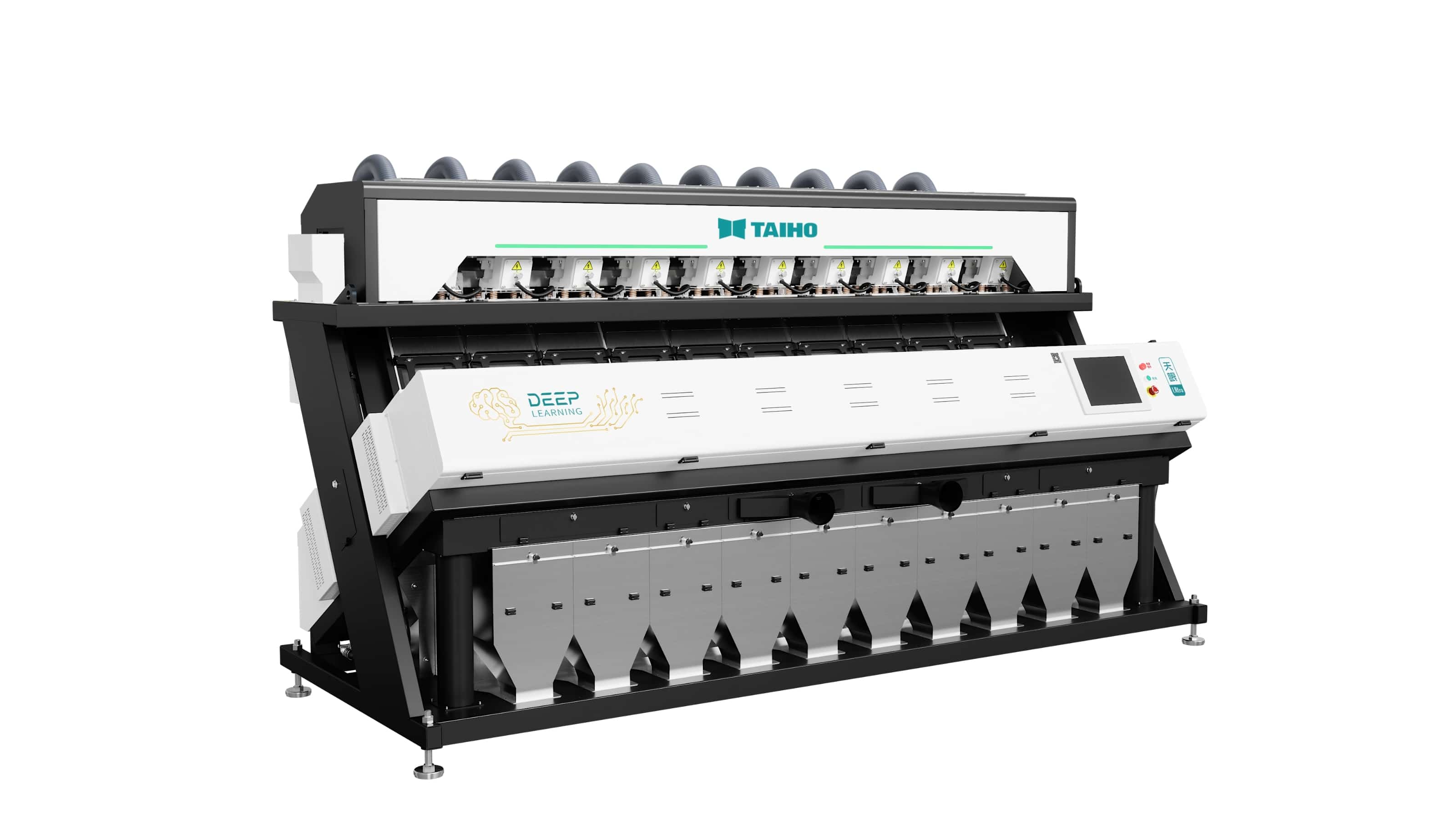

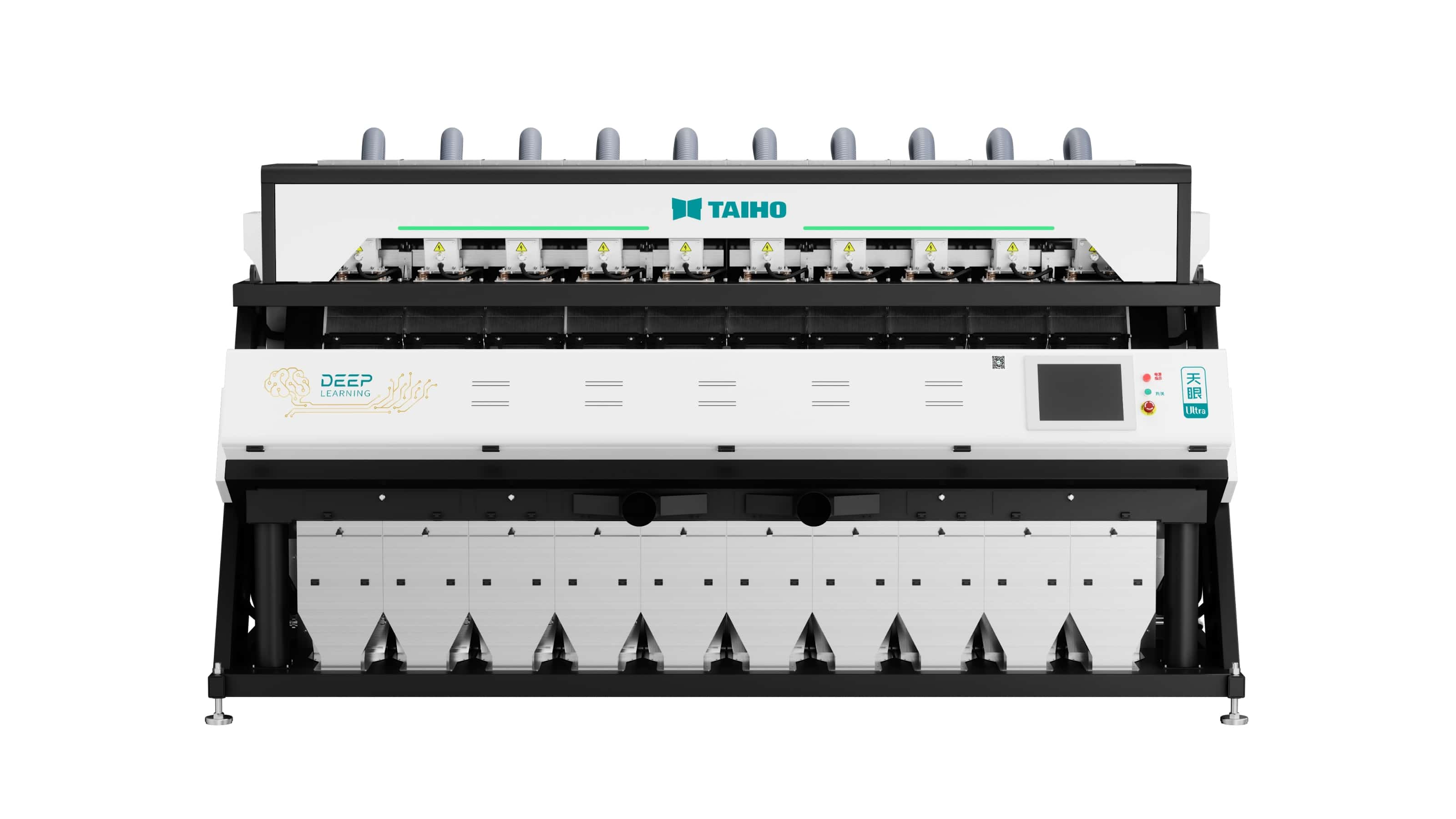

TAIHO UV Series Grain Color Sorter

Suitable for sorting miscellaneous grains, nuts and other materials;

Provide multi-dimensional sorting and detection solutions for colors, shapes, textures, materials, etc., with characteristics such as high output, high cleaning rate, low loss, stability and reliability;

Different sorting and detection schemes can be configured according to different materials to meet the sorting needs of different materials;

Meet the high standard requirements for quality control in the agricultural and sideline product industry.



Scope of application
Coffee bean
Walnut
Pine nut
Peach kernel
Almond
Almonds
Pecan
Hazelnut
Chinese chestnut
Cashew
Pistachio
Sunflower seeds
Peanut
Product advantages
Holographic infrared, multi-dimensional intelligent selections

Infrared intelligent selection technology: 360° stereoscopic multi-dimensional imaging reproduces original features of materials and directly shoots any material defect.

Center-positioning removal technology: shooting the material center, forcing more evenly, more cost-saving and less taking-out.

High-end customized ejector: low gas consumption with more than 12 billion shooting times lifespan.

Infrared lighting system: upgraded lighting with double illumination and light up minor flaws.

Self-collaborative sensing technology: SOC architecture enables higher integration, faster computing speed, and stronger processing capacity.


Brand New Architecture for You

Open sorting room: it reduces the impact of dust, water mist and oily particles effectively, and can be easily maintained and cleaned.

Lighting system: built-in infrared halogen lamp adopts a parabolic structure to produce more concentrated light, and is more convenient for maintenance and replacement.

Imaging structure: human-like binocular vision structure makes more focused vision and finds out foreign matters in seconds.

Customized services: double-infrared cameras and four-infrared cameras are optional based on your needs.


Quality First, Distinguished & Pure Services

Intelligent ash removal 3.0: inductive real-time ash removal + automatic recognition ofspatial degree of ash make ash removal better and wiser.

Dust removal system: front glass dust removal is provided to simultaneously sort and remove dust, achieving high quality and high yield.

Rodless cylinder: it is of high-end customization, stronger toughness and durability.


Intelligent Interconnection and Simple lnteraction


Unattended mode: it can achieve 24/7 monitoring, remote real-time control, and intelligent selection of sorting scheme.

Simple Ul: it has an extremely simple interface and allows simple and clear operation.


Specifications and Parameters

Model

Single-chute

throughput

(t/h)

Power

(kw)

Electricity voltage

(v)

Air pressure

(mpa)

Air consumption

(m³/min)

Size

(mm)

Weight

(kg)

6SXZ-900V+UV ≤3.0 5.1 AC220V±5%  50/60Hz 0.5-0.8 6.0-9.0 3796*1510*1945 2342
6SXZ-1080V+UV 6.3 AC220V±5%  50/60Hz 0.5-0.8 7.2-10.8 4434*1510*1945 2775

Note:


1. All color-sorting performance data are based on maize containing ≤5% impurities.

2. Specifications are subject to change without notice due to continuous product upgrades. Actual machine configuration prevails.

3. Performance claims in this brochure derive from controlled laboratory tests; on-site results may vary with operating conditions.
