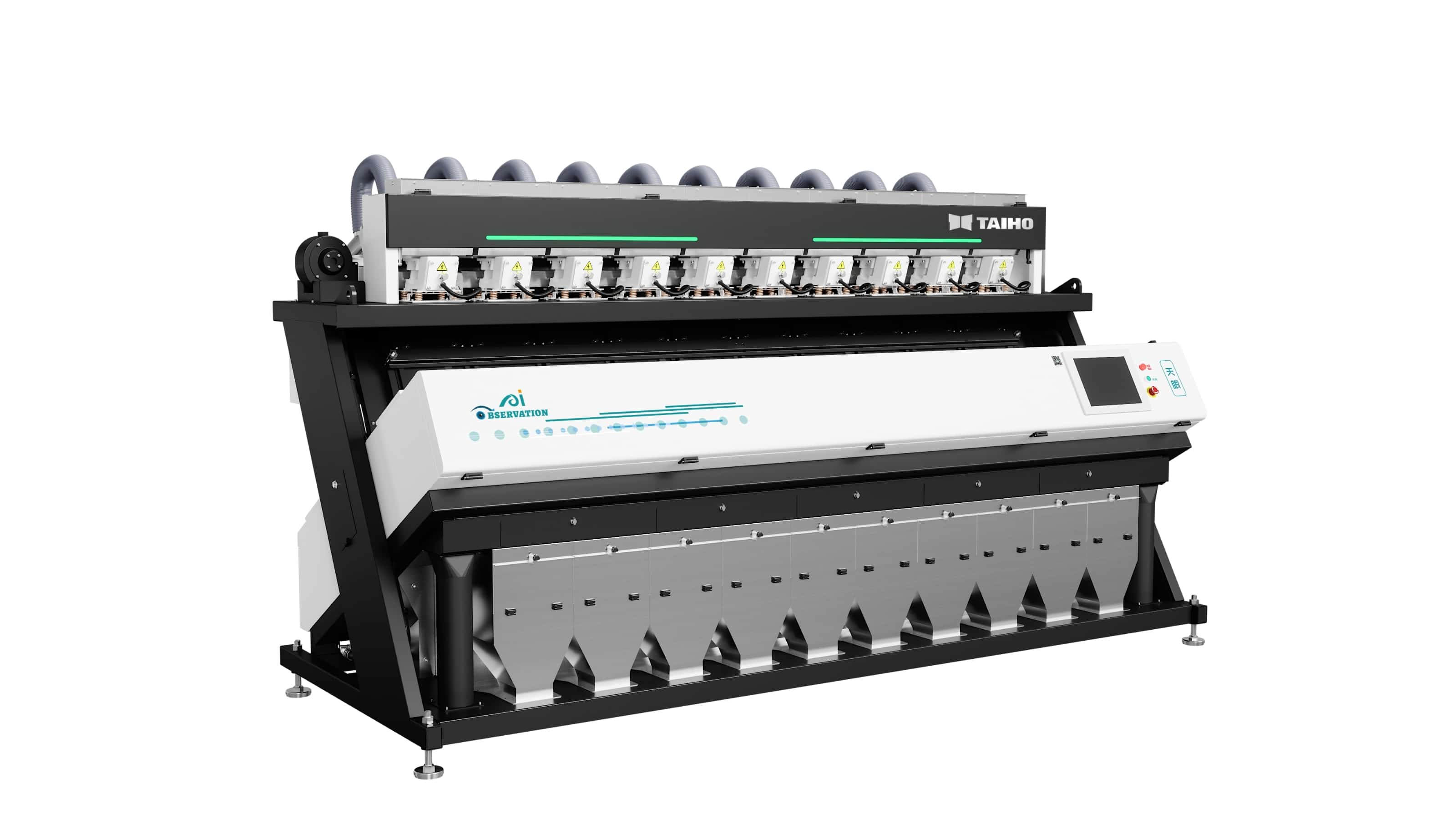

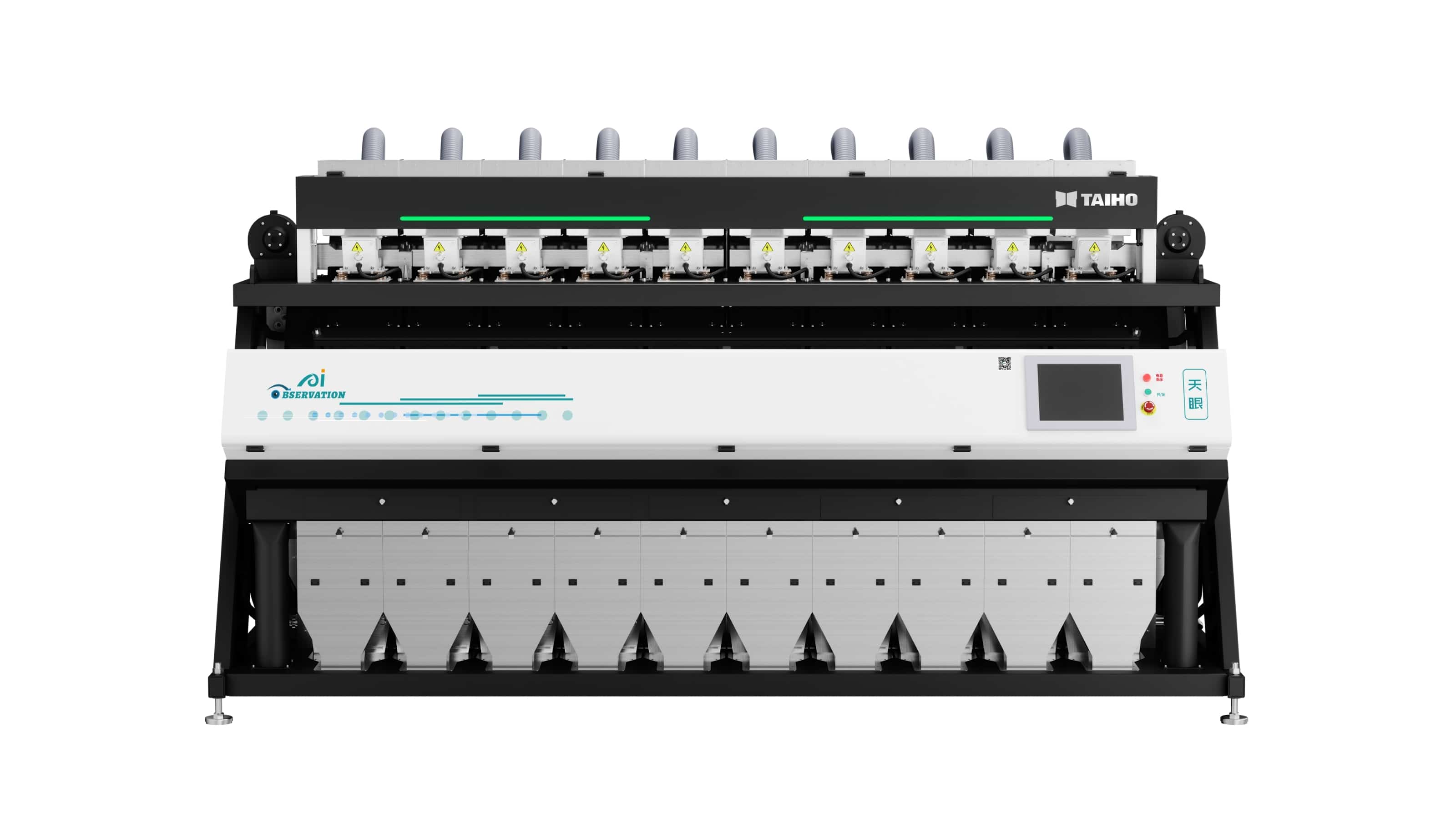

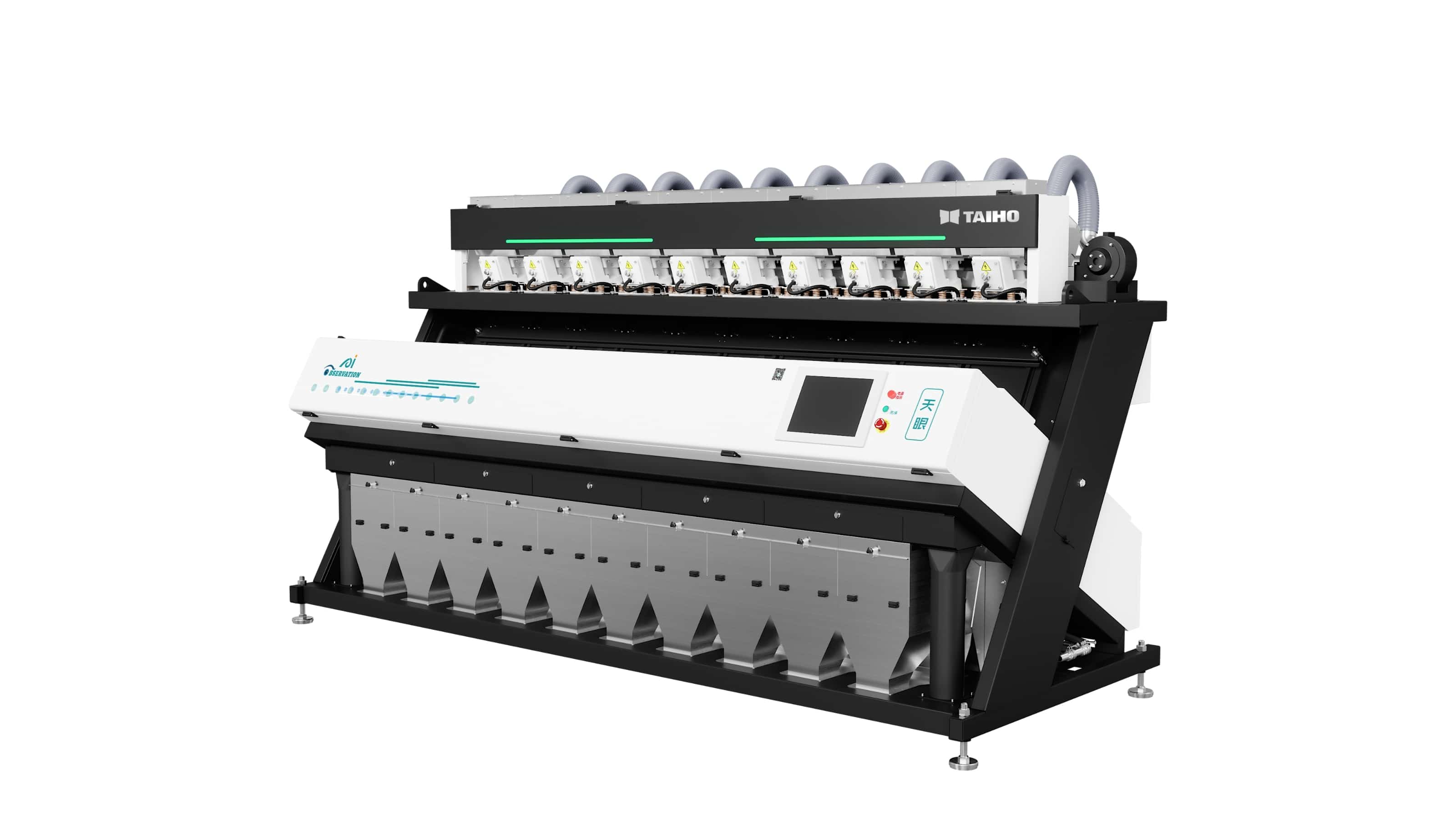

TAIHO Grain Observation Series Color Sorter

Upgraded from the proven classic model, equipped with a fully optimized and stable platform architecture. It inherits the reliable legacy and high-standard sorting precision, enhances operational stability, simplifies maintenance procedures, and provides long-term, high-precision, continuous sorting support for large-scale rice production lines.

Ultra-HD Recognition, lmpurities Fully Detected Millisecond Closed-loop, Efficient & Stable Sorting Full-category Adaptation, Cover All Grains High-end Performance, New Industry Benchmark

Name：

6SXZ-756V+ 6SXZ-630V+ 6SXZ-504V+ 6SXZ-441V+ 6SXZ-315V+ 6SXZ-189V+

Online contact +86 182 2585 8868

Scope of application Product advantages Specifications and Parameters

Scope of application

Beans

Traditional Chinese Medicine Materials

Wheat

Dehydrated vegetables

Nuts

Spices and spices

Product advantages

LED optical sensing system, energy-saving and more durable

Adopting low-temperature spotlight LED light source, intelligent dimming, 16 million color mixing options, energy-saving and more durable.

Color restoration algorithm, clear and more realistic

Integrating multidimensional data such as light, quality, color, and shape, achieving quantum level recognition of rice raw materials and restoring their true colors.

Intelligent variable frequency solenoid valve, saving gas and electricity

Adaptive injection system, no exhaust gas, no air leakage, fast response speed, low power consumption, and long service life.

Center positioning removal algorithm, efficient and more accurate

The algorithm fits the digital model of defective materials, marks the center point of the material, and achieves small gas volume and more accurate center removal.

Intelligent holographic flash camera, high-resolution and clearer

Equipped with a self repairing loop lens and adapted to intelligent image sensors, achieving 260 million pixel ultra clear resolution.

Al Smart Core Processing Platform, Faster and Smarter

Equipped with SOC intelligent chips and integrating AI deep learning algorithms, a sorting platform with higher integration, faster computation, and stronger processing capabilities is constructed.

Intelligent ash cleaning 5.0 system, with high suction power for cleaner cleaning

The full coverage gradient dust removal system can be equipped with an optional suction and dust removal device, which has a more reasonable structure, stronger suction force, and cleaner dust removal.

One click intelligent remote operation and maintenance, more convenient after-sales service

Engineers can remotely connect to customer machines, understand machine status, adjust color selection parameters, optimize color selection results, and provide customers with faster after-sales service.

Specifications and Parameters

Model	Single-chute throughput (t/h)	Power (kw)	Electricity voltage (v)	Air pressure (mpa)	Air consumption (m³/min)	Size (mm)	Weight (kg)
6SXZ-189V+	≤2.5	1.8	AC220V±5% 50/60Hz	0.5-0.8	＜1.7	173615101945	981
6SXZ-315V+		2.7	AC220V±5% 50/60Hz	0.5-0.8	＜2.8	235115101945	1283
6SXZ-441V+		3.9	AC220V±5% 50/60Hz	0.5-0.8	＜3.9	285415101945	1650
6SXZ-504V+		4.3	AC220V±5% 50/60Hz	0.5-0.8	＜4.4	316815101945	1845
6SXZ-630V+		5.1	AC220V±5% 50/60Hz	0.5-0.8	＜5.5	379615101945	2165
6SXZ-756V+		6.0	AC220V±5% 50/60Hz	0.5-0.8	＜6.6	443415101945	2572

Note:

1. All color-sorting performance data are based on maize containing ≤5% impurities.

2. Specifications are subject to change without notice due to continuous product upgrades. Actual machine configuration prevails.

3. Performance claims in this brochure derive from controlled laboratory tests; on-site results may vary with operating conditions.

Model	Single-chute throughput (t/h)	Power (kw)	Electricity voltage (v)	Air pressure (mpa)	Air consumption (m³/min)	Size (mm)	Weight (kg)
6SXZ-189V+	≤2.5	1.8	AC220V±5% 50/60Hz	0.5-0.8	＜1.7	173615101945	981
6SXZ-315V+		2.7	AC220V±5% 50/60Hz	0.5-0.8	＜2.8	235115101945	1283
6SXZ-441V+		3.9	AC220V±5% 50/60Hz	0.5-0.8	＜3.9	285415101945	1650
6SXZ-504V+		4.3	AC220V±5% 50/60Hz	0.5-0.8	＜4.4	316815101945	1845
6SXZ-630V+		5.1	AC220V±5% 50/60Hz	0.5-0.8	＜5.5	379615101945	2165
6SXZ-756V+		6.0	AC220V±5% 50/60Hz	0.5-0.8	＜6.6	443415101945	2572

Note:

1. All color-sorting performance data are based on maize containing ≤5% impurities.

2. Specifications are subject to change without notice due to continuous product upgrades. Actual machine configuration prevails.

3. Performance claims in this brochure derive from controlled laboratory tests; on-site results may vary with operating conditions.
