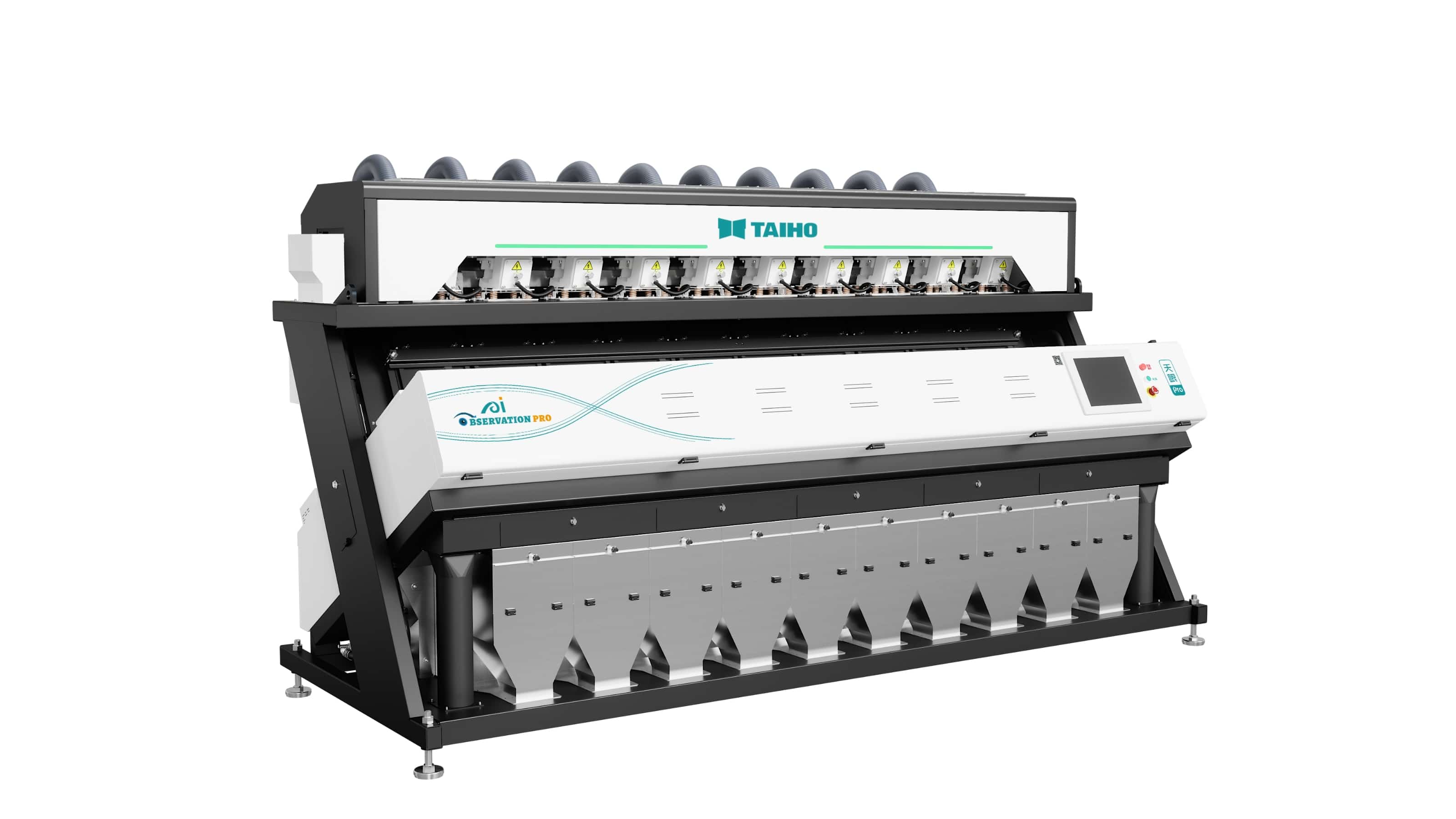

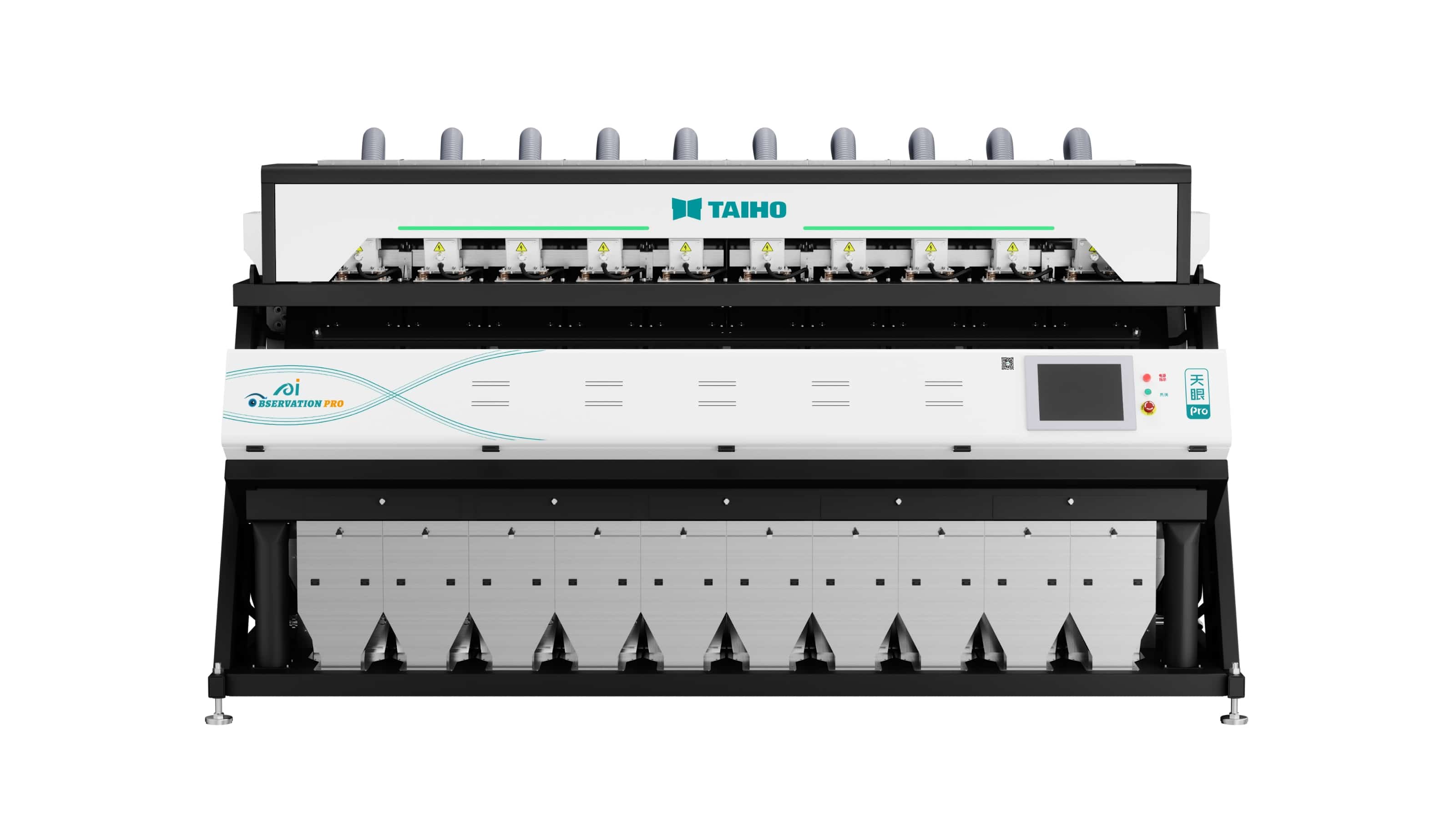

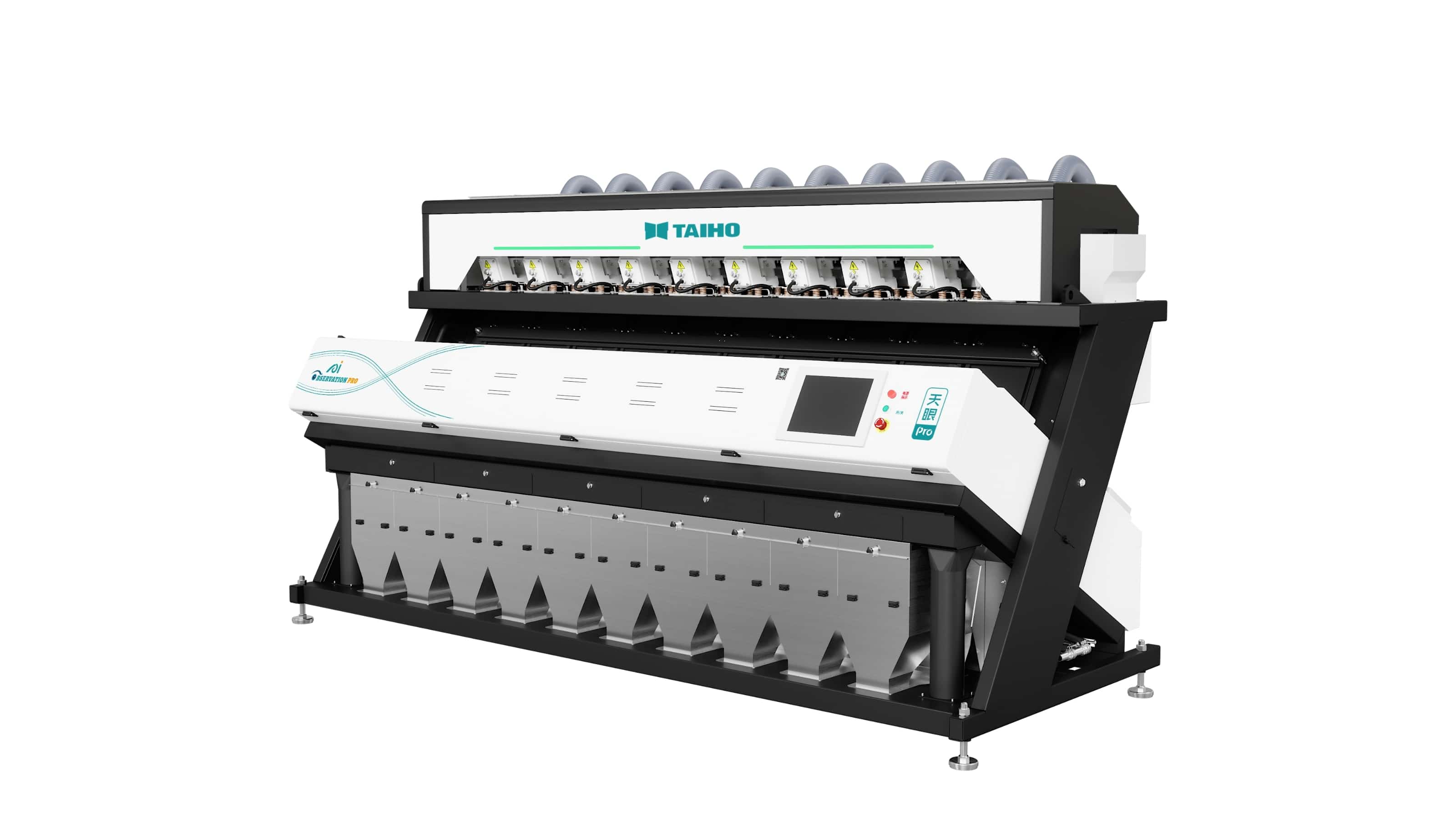

TAIHO Grain Color Sorter

TAIHO Grain Observation Pro Series

Twenty years of deep cultivation in color sorting, both internal and external improvements, and doubled production; Hundreds of algorithms have been developed to identify colors and shapes; Nearly a thousand process quality inspections, consistent quality, and excellence; Cooperating with tens of thousands of customers, intelligent interconnection, worry-free after-sales.

90-channel Configuration, High Loading Capacity Shadow-free Detection, No Sorting Blind spots Fast Parameter Switching, Multi-scenario Adaptation High Capacity & Low Loss, Empower Mass

Name：

6SXZ-1440V+Pro 6SXZ-1080V+Pro 6SXZ-900V+Pro 6SXZ-720V+Pro 6SXZ-630V+Pro 6SXZ-450V+Pro 6SXZ-270V+Pro

Online contact +86 182 2585 8868

Scope of application Product advantages Specifications and Parameters

Scope of application

Beans

Traditional Chinese Medicine Materials

Wheat

Dehydrated vegetables

Nuts

Spices and spices

Product advantages

Intelligent holographic flash camera, high-resolution and clearer

Free adaptation of intelligent holographic flash camera, flexible switching of visible or infrared optical lenses, can achieve 35K high-speed imaging+350 million pixel ultra clear resolution.

AI intelligent chip processing platform, faster and more intelligent

Equipped with SOC intelligent chips and integrating AI deep learning algorithms, a sorting platform with higher integration, faster computation, and stronger processing capabilities is constructed.

Intelligent ash cleaning 5.0 system, with high suction power for cleaner cleaning

The full coverage gradient dust removal system can be equipped with an optional suction and dust removal device, which has a more reasonable structure, stronger suction force, and cleaner dust removal.

Adaptive feeding system for larger and more uniform production

Adapted to intelligent material level sensors, non-contact real-time monitoring of feeding situation, balanced channel feeding amount through PID closed-loop control, achieving uniform feeding.

LED optical sensing system, energy-saving and more durable

Adopting low-temperature spotlight LED light source, intelligent dimming, 16 million color mixing options, energy-saving and more durable.

Color restoration algorithm, clear and more realistic

Integrating multidimensional data such as light, quality, color, and shape, achieving quantum level recognition of raw materials and restoring their true colors.

Intelligent variable frequency solenoid valve, saving gas and electricity

Adaptive injection system, no exhaust gas, no air leakage, fast response speed, low power consumption, and long service life.

Center positioning removal algorithm, efficient and more accurate

The algorithm fits the digital model of defective materials, marks the center point of the material, and achieves small gas volume and more accurate center removal.

Specifications and Parameters

Model	Single-chute throughput (t/h)	Power (kw)	Electricity voltage (v)	Air pressure (mpa)	Air consumption (m³/min)	Size (mm)	Weight (kg)
6SXZ-270V+Pro	≤3.5	1.8	AC220V±5% 50/60Hz	0.5-0.8	＜2.5	173615101945	1020
6SXZ-450V+Pro		2.7	AC220V±5% 50/60Hz	0.5-0.8	＜4.0	235115101945	1335
6SXZ-630V+Pro		3.9	AC220V±5% 50/60Hz	0.5-0.8	＜5.5	285415101945	1715
6SXZ-720V+Pro		4.3	AC220V±5% 50/60Hz	0.5-0.8	＜6.0	316815101945	1910
6SXZ-900V+Pro		5.1	AC220V±5% 50/60Hz	0.5-0.8	＜7.0	379615101945	2240
6SXZ-1080V+Pro		5.5	AC220V±5% 50/60Hz	0.5-0.8	＜8.0	443415101945	2655
6SXZ-1080V+Pro (back to back)		6.9	AC220V±5% 50/60Hz	0.5-0.8	＜8.0	282229011940	2837
6SXZ-1440V+Pro (back to back)		8.6	AC220V±5% 50/60Hz	0.5-0.8	＜10.0	345029011940	3636

Note:

1. All color-sorting performance data are based on maize containing ≤5% impurities.

2. Specifications are subject to change without notice due to continuous product upgrades. Actual machine configuration prevails.

3. Performance claims in this brochure derive from controlled laboratory tests; on-site results may vary with operating conditions.
