Observation Series

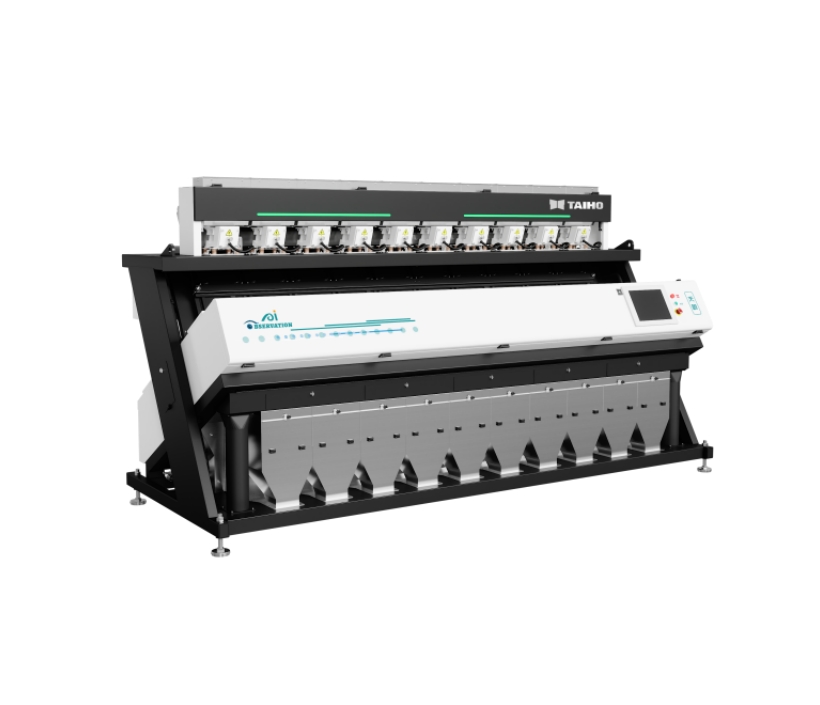

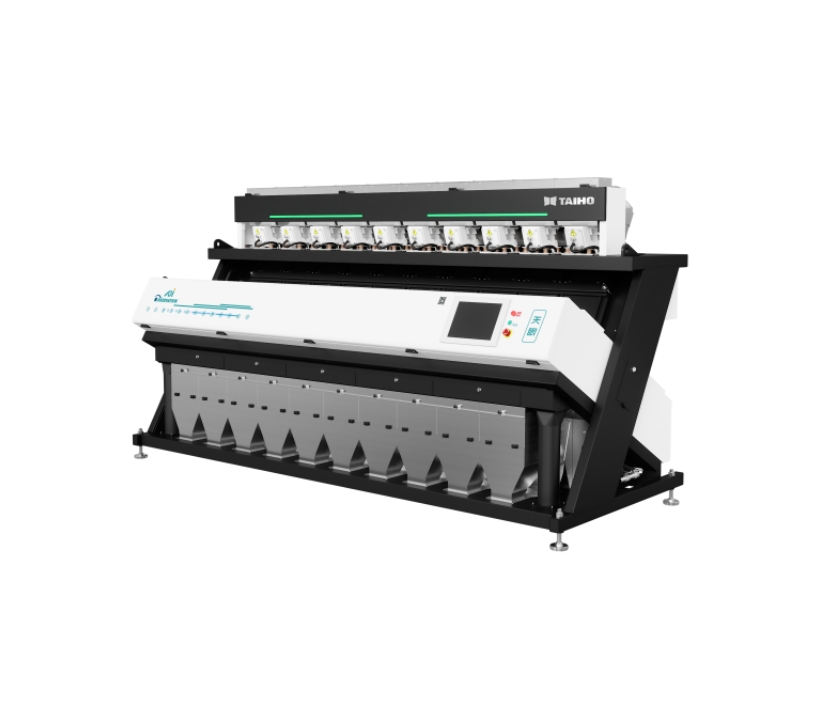

The Da Mi Color Sorter (AI Intelligent Selection Tianyan Series) applies the industry's highest 350 million pixel ultra clear image+solar spectral technology to achieve 360 degree multi-dimensional imaging. Equipped with AI self collaborative sensing technology, matched with military grade communication systems, to create a highly integrated, fast transmission, and more intelligent sorting system. Applying multispectral confocal technology to effectively remove glass, desiccant, and transparent plastic particles from rice.

Won the Industrial Design Gold Award 350 million pixel ultra clear image Solar like spectroscopy technology Multi spectral confocal technology Can remove glass, desiccants, transparent plastic particles, etc

Name：

6SXM-819V 6SXM-630V 6SXM-504V 6SXM-441V 6SXM-378V 6SXM-315V 6SXM-252V

Online contact +86 178 5515 2143

Scope of application Product advantages Specifications and Parameters

Scope of application

Polished glutinous rice

Polished round-grained rice

Indica rice

Brown rice

Red rice

Product advantages

Intelligent holographic flash camera, high-resolution and clearer

Adapted to intelligent image sensors and various complex optical environments, it can achieve 35K high-speed imaging+350 million pixel ultra clear resolution.

Intelligent variable frequency solenoid valve, saving gas and electricity

Adaptive injection system, no exhaust gas, no air leakage, fast response speed, low power consumption, and long service life.

Al Smart Core Processing Platform, Faster and Smarter

Equipped with SOC intelligent chips and integrating AI deep learning algorithms, a sorting platform with higher integration, faster computation, and stronger processing capabilities is constructed.

Adaptive feeding system for larger and more uniform production

Adapted to intelligent material level sensors, non-contact real-time monitoring of feeding situation, balanced channel feeding amount through PID closed-loop control, achieving uniform feeding.

AI color dual selection algorithm, suitable for all scenes

Supports the recognition of morphological features of materials in all directions, including length, fragmentation, thinness, and roundness, and can be used simultaneously with color selection function.

Center positioning removal algorithm, efficient and more accurate

The algorithm fits the digital model of defective materials, marks the center point of the material, and achieves small gas volume and more accurate center removal.

Color restoration algorithm, clear and more realistic

Integrating multidimensional data such as light, quality, color, and shape, achieving quantum level recognition of rice raw materials and restoring their true colors.

Full link remote interconnection, convenient and considerate

Customized 4G/5G gateway for industrial Internet of Things, equipped with routing, 4G/5G, WIFI, and wired internet functions, allowing users to check the device's working status anytime, anywhere.

Specifications and Parameters

Model	Throughput (t/h)	Carry overratio	Power (kw)	Supply voltage (v)	Air pressure (mpa)	Air consumption (m ³ /min)	Size (mm)	Weight (kg)
6SXM-252V	4.0-8.0	>120:1	2.4	220V/50Hz	0.5-0.8	1.5-2.5	183514601960	1020
6SXM-315V	5.0-10.0	>120:1	3	220V/50Hz	0.5-0.8	2.0-3.0	214914601960	1187
6SXM-378V	6.0-12.0	>120:1	3.6	220V/50Hz	0.5-0.8	2.5-3.5	246314601960	1332
6SXM-441V	7.0-14.0	>120:1	4.1	220V/50Hz	0.5-0.8	3.0-4.0	277714601960	1525
6SXM-504V	8.0-16.0	>120:1	4.7	220V/50Hz	0.5-0.8	3.5-4.5	309114601960	1686
6SXM-630V	10.0-20.0	>120:1	5.8	220V/50Hz	0.5-0.8	4.5-6.5	371914601960	2047
6SXM-819V	13.00-26.0	>120:1	7.8	220V/50Hz	0.5-0.8	5.0-7.5	512514501980	2615

Note：

1.The above color selection performance is based on rice with impurities less than 2% as an example;

2.If there are any updates to the product, the actual machine shall prevail.
