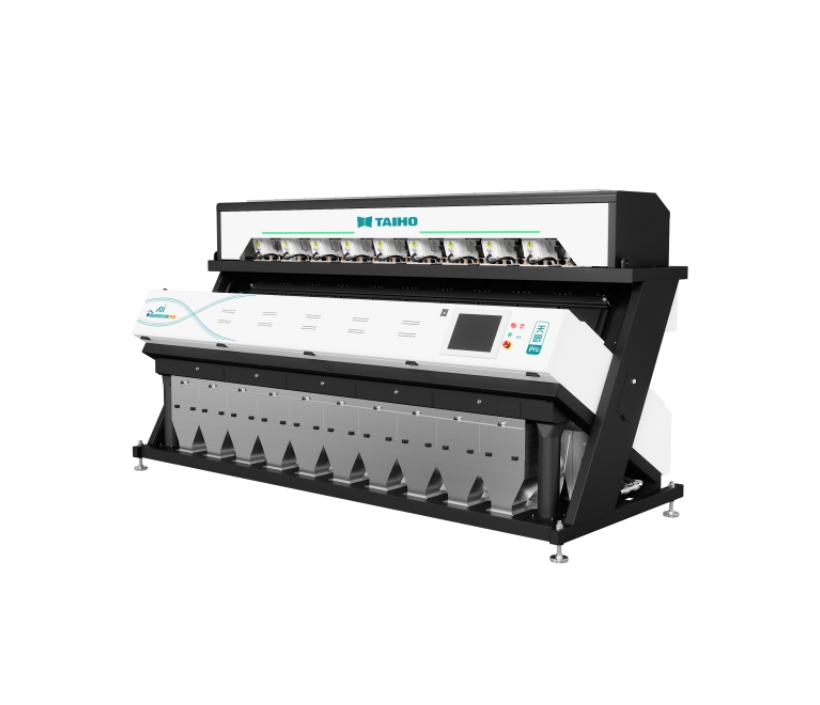

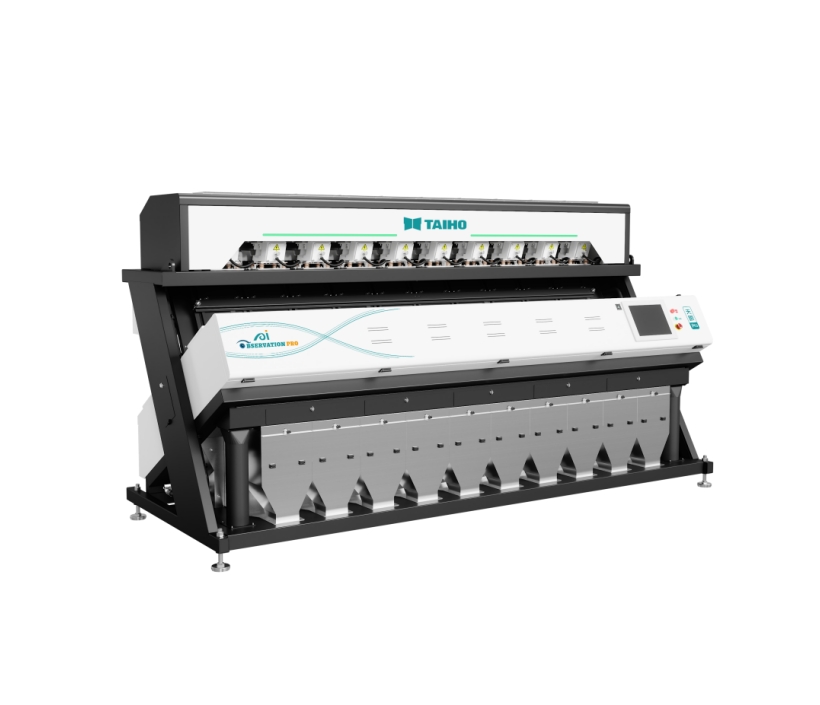

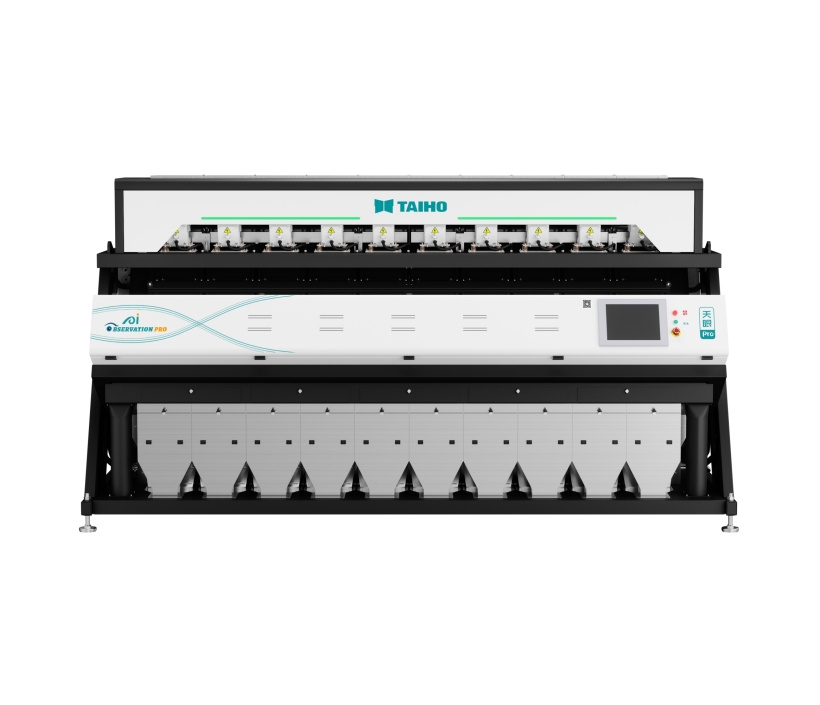

Observation Pro Series

Cooperating with tens of thousands of customers, intelligent interconnection, worry-free after-sales Nearly a thousand process quality inspections, consistent quality, and excellence Hundreds of algorithms have been developed to identify colors and shapes Twenty years of deep cultivation in color sorting, and doubled production

Name：

6SXM-630VA+ 6SXM-720VA+ 6SXM-900VA+

Online contact +86 178 5515 2143

Scope of application Product advantages Specifications and Parameters

Scope of application

Red rice

Brown rice

Indica rice

Polished round-grained rice

Polished glutinous rice

Product advantages

Twenty Years Of Deep Cultivation In Color Sorting, Doubled Production

Twenty years of deep cultivation in color sorting, both internal and external improvements, and doubled production. With new evolution, improved efficiency and increased production, platform-based models, upgraded modular structure, load increased by 3-5 times, feeding and rejection system efficiency increased by 30%, dust removal optimized by 50%, and production increased by 66%.

Hundreds Of Algorithms To Identify Colors And Shapes

Hundreds of algorithms have been developed to identify colors and shapes. Shape and color selection by AI empowerment, intelligent system, identification as fine as 0.15mm, 350 million pixels ultra-clear resolution, new shape selection algorithm for yellow, white, transparent, long, round, and broken materials.

Thousand Process Quality Inspections, Consistent Quality

Nearly a thousand process quality inspections, consistent quality, and excellence. Thousands of quality inspections, quality control, standardized production, more stable equipment effects, SOC smart core matching intelligent high-frequency solenoid valve, blowing thousands of times per second, lower carry-out, higher clean rate.

Cooperating With 10000+ Customers, Worry-Free After-Sales

Cooperating with tens of thousands of customers, intelligent interconnection, worry-free after-sales. We are listed brand with strong strength, we offer customized service 24/7 online, and real-time response in the cloud. Including user profile creation for tracking service, equipment can be intelligently interconnected to achieve remote operation and maintenance.

Specifications and Parameters

Model	Single-channel throughput (t/h)	Power (kw)	Supply voltage (v)	Air pressure (mpa)	Air consumption (m ³/min)	Size (mm)	Weight (kg)
6SXM-270VA+	7.5-10.5	2.5	AC220V±5% 50/60Hz	0.5-0.8	1.8-2.6	170615251935	1128
6SXM-450VA+	12.5-17.5	3.9	AC220V±5% 50/60Hz	0.5-0.8	2.6-3.8	235515251935	1510
6SXM-630VA+	17.5-24.5	5.3	AC220V±5% 50/60Hz	0.5-0.8	3.8-4.8	282315251935	1780
6SXM-720VA+	20.0-28.0	6.0	AC220V±5% 50/60Hz	0.5-0.8	4.8-5.5	313715251935	2000
6SXM-900VA+	25.0-35.0	7.4	AC220V±5% 50/60Hz	0.5-0.8	5.5-6.5	376515251935	2520
6SXM-1080VA+	30.0-42.0	8.9	AC220V±5% 50/60Hz	0.5-0.8	6.5-7.2	440315251935	2968

Note:

1. The above color sorting performance is based on long-grain rice containing 5% impurities;

2. Products if any update to the actual machine shall prevail.

Model	Single-channel throughput (t/h)	Power (kw)	Supply voltage (v)	Air pressure (mpa)	Air consumption (m ³/min)	Size (mm)	Weight (kg)
6SXM-270VA+	7.5-10.5	2.5	AC220V±5% 50/60Hz	0.5-0.8	1.8-2.6	170615251935	1128
6SXM-450VA+	12.5-17.5	3.9	AC220V±5% 50/60Hz	0.5-0.8	2.6-3.8	235515251935	1510
6SXM-630VA+	17.5-24.5	5.3	AC220V±5% 50/60Hz	0.5-0.8	3.8-4.8	282315251935	1780
6SXM-720VA+	20.0-28.0	6.0	AC220V±5% 50/60Hz	0.5-0.8	4.8-5.5	313715251935	2000
6SXM-900VA+	25.0-35.0	7.4	AC220V±5% 50/60Hz	0.5-0.8	5.5-6.5	376515251935	2520
6SXM-1080VA+	30.0-42.0	8.9	AC220V±5% 50/60Hz	0.5-0.8	6.5-7.2	440315251935	2968

Note:

1. The above color sorting performance is based on long-grain rice containing 5% impurities;

2. Products if any update to the actual machine shall prevail.
